Description

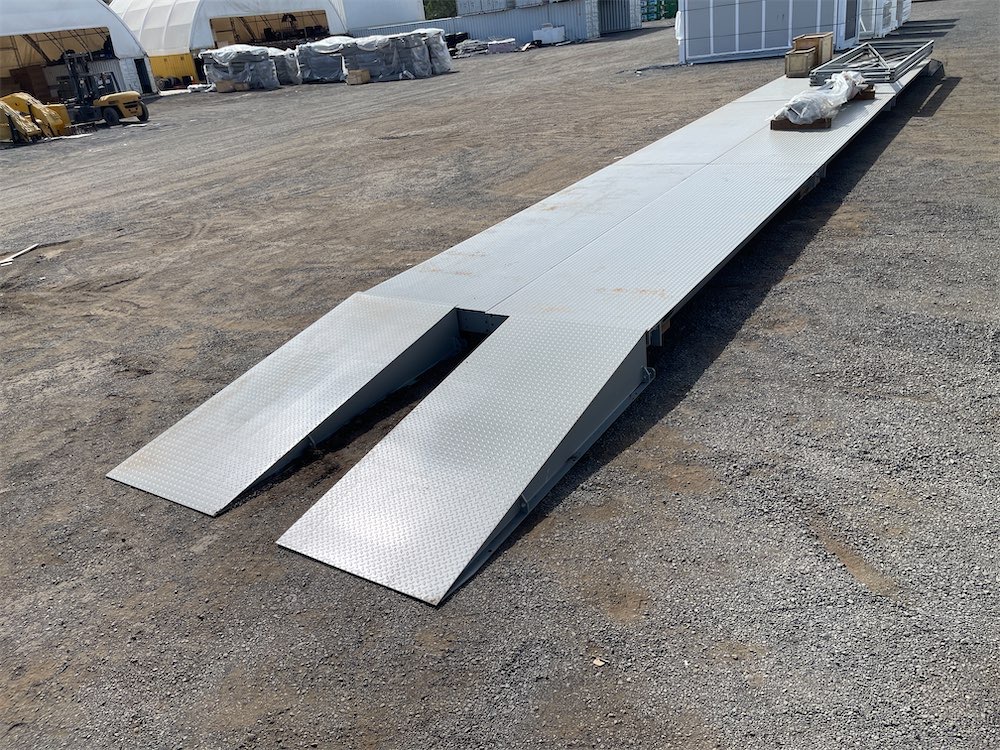

100 ton truck Scale / Weigh Bridge with Ramps

Introducing the 100 Ton Truck Scale / Weigh Bridge with Ramps—the ultimate solution for accurate and reliable heavy-duty weighing. Built with high-quality materials and advanced technology, this truck scale is designed to meet the demands of various industrial applications. Whether you’re in logistics, construction, or agriculture, this weighbridge offers precision, durability, and ease of use, ensuring your operations run smoothly and efficiently.

Key Features

High-Quality Construction

• Durable Design: Constructed with high-quality steel in a standard U-shape beam and modular design, this scale is built to last. Its robust structure ensures long-term durability, making it suitable for heavy-duty applications.
• Anti-Rust and Anti-Corrosion Coating: The scale is coated with anti-rust and anti-corrosion paint, providing protection against harsh weather conditions and ensuring longevity.

Safety and Accuracy

• Slip-Resistant Checker Plate: The top plate of the scale features an 8 mm checker plate, which is slip-resistant. This design enhances safety by preventing vehicles from slipping during the weighing process.
• Wide Temperature Range: This scale operates effectively in temperatures ranging from -35℃ to +70℃, making it versatile for use in various climates and locations.

Advanced Load Cells and Digital Indicator

• Heavy-Duty Load Cells: The included industrial load cells are designed for heavy-duty use, ensuring accurate and reliable weight measurements. These load cells can handle a safe overload limit of 150% and an ultimate overload limit of 300%.
• Digital Weighing Indicator: The digital indicator provides real-time data readings with high accuracy (OIML III). It features a sound alert system that notifies users when the weight limit is exceeded, promoting safe usage.

Data Management

• Record Storage and Protection: The weighing indicator can store, check, and delete weighing records. It also includes power-off protection to secure data, providing users with a convenient way to track and manage their weighing data over time.

Optional Accessories

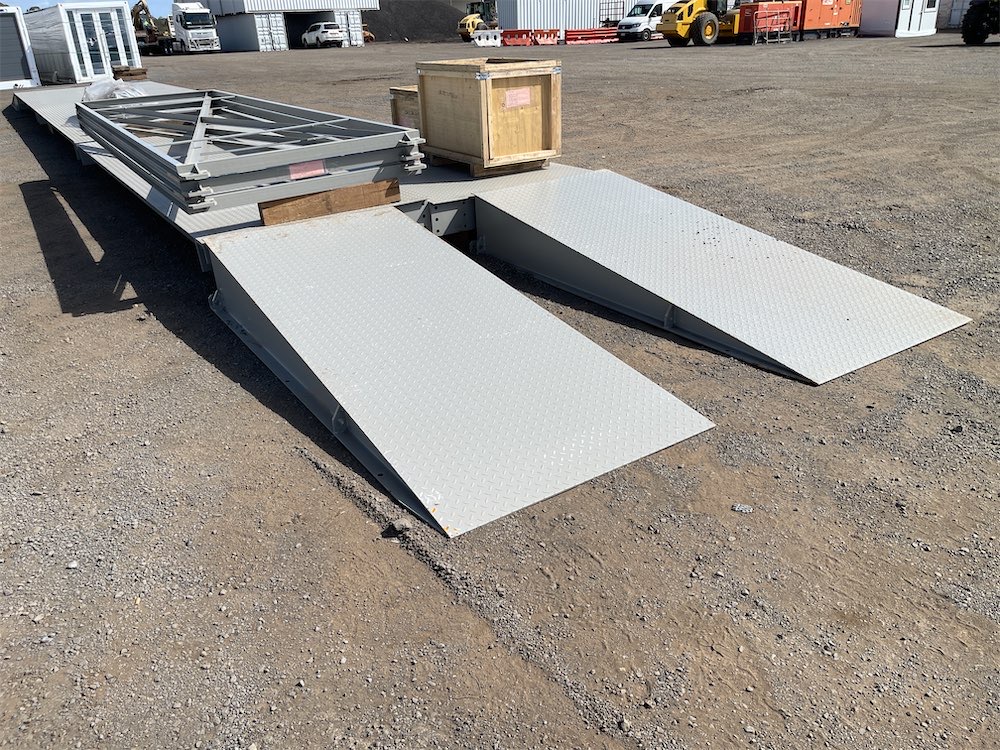

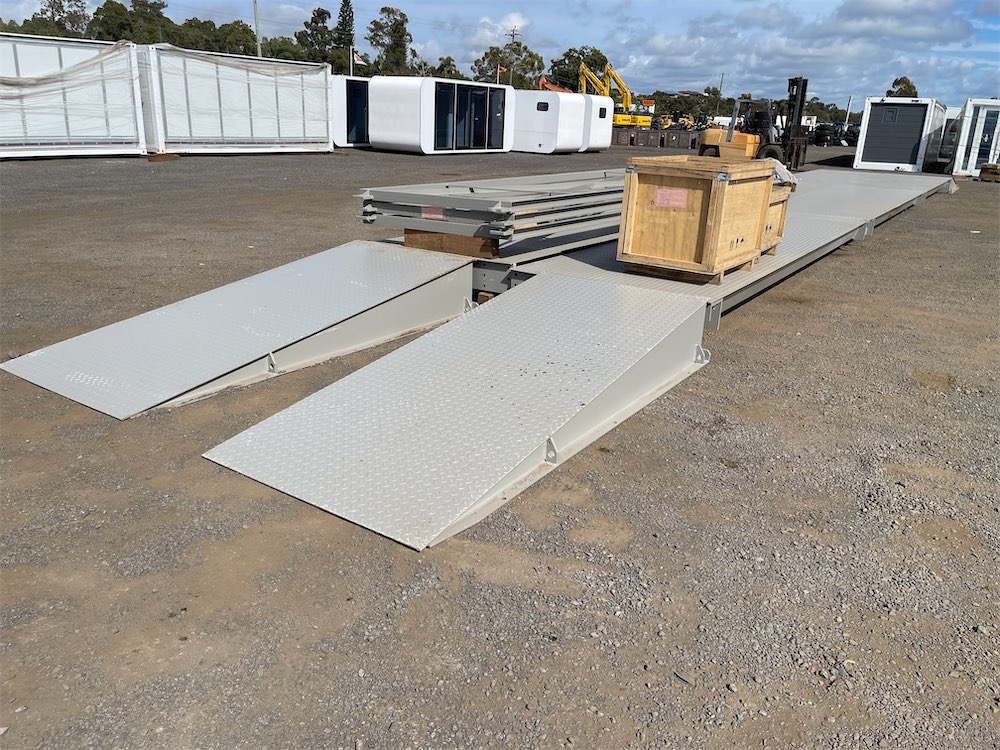

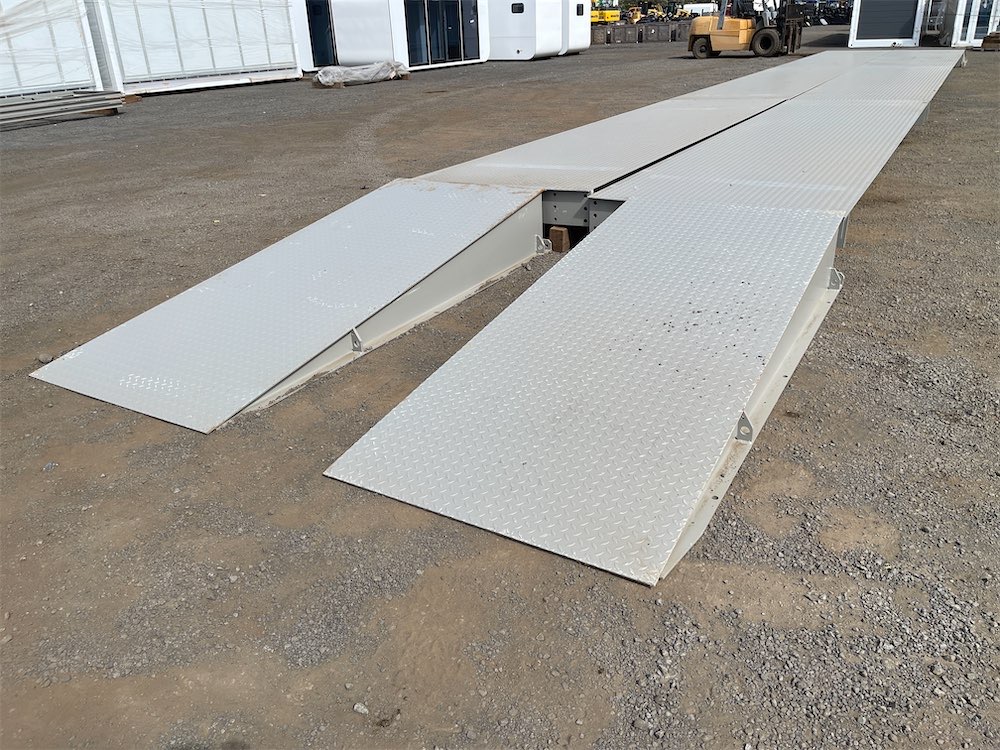

• Above-Ground Ramps: Optional above-ground ramps are available for both ends of the scale, facilitating easy vehicle access. (Sold separately)
• Guard Rails and LED Display: Additional accessories such as guard rails and an external wall-mounted LED display can be ordered to enhance the functionality and safety of the weighbridge.

Specifications

Scale Specifications

• Capacity: 100 tons
• Platform Dimensions:
  • Width: 118” (9.84’)
  • Length: 675” (56’)
• Structure: U-shaped beam (6)
• Steel Quality: High-quality steel with anti-rust & anti-corrosion painting

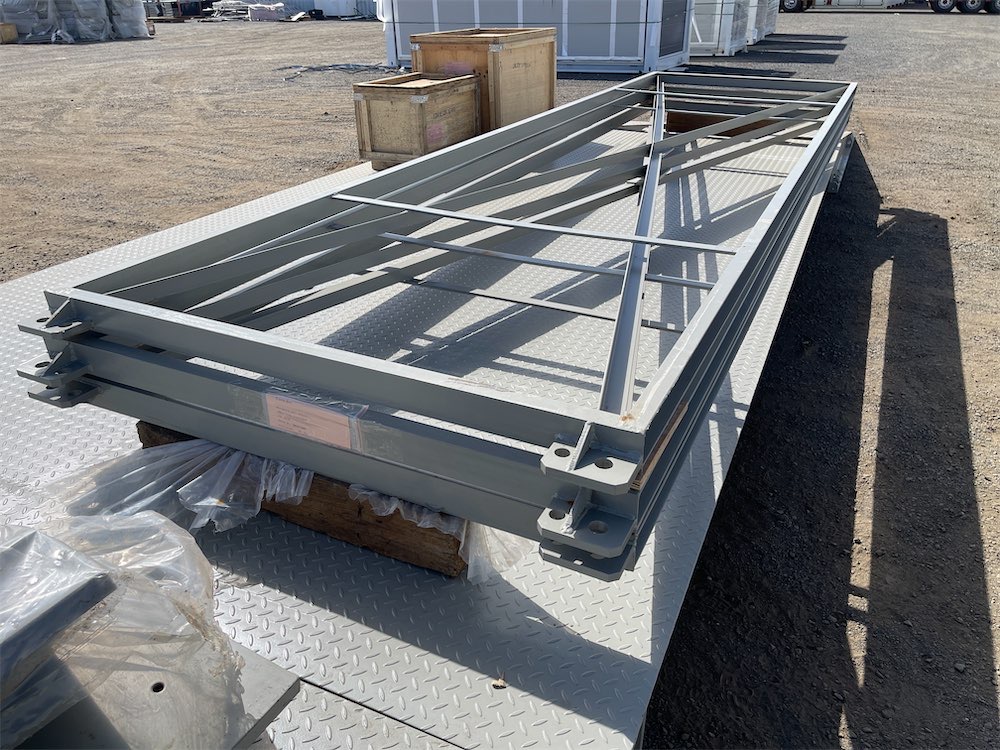

• Modular Pieces: 6 modular pieces (59” x 225”)
• Accuracy: OIML III
• Temperature Range: -35℃ to +70℃
• Relative Humidity: <95%
• Safe Overloading: 120%

Load Cell Specifications

• Working Temperature Range: -35℃ to +70℃
• Safe Overload: 150% (full scale)
• Ultimate Overload: 300% (full scale)
• Protection Class: IP68

Weight Indicator Specifications

• Operating Temperature: 0℃ to 40℃
• Relative Humidity: ≤85%RH
• Power Supply: 220V/60Hz or 110V/60Hz
• Transmission Mode: RS232/RS422/485 (optional)
• Baud Rate Options: 600/1200/2400/4800/9600
• Features: Sound alert for overweight, data storage/check/delete, power-off protection

Junction Box Specifications

• Material: Stainless steel cover with waterproof seal joints
• Protection Device: Resistance protection device
