Description

Buy 40ft Skidded Frac Tank Container online

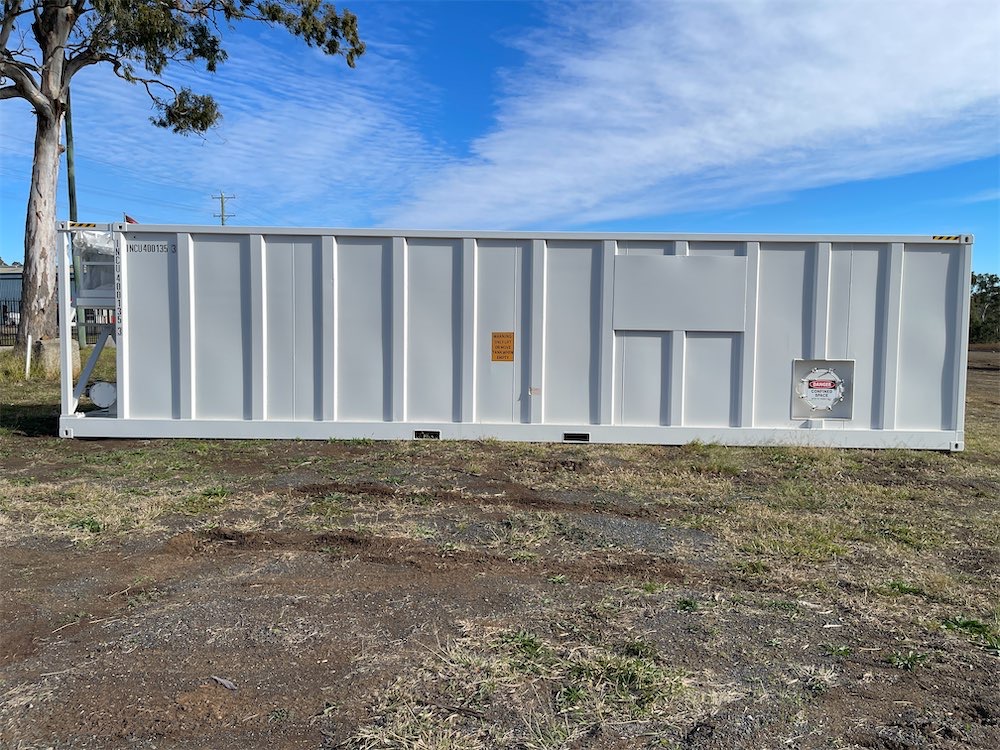

Introducing the 40ft Skidded Frac Tank Container, an essential asset for efficient liquid storage and management in the oil and gas industry. Designed with durability and functionality in mind, this frac tank container is constructed from high-quality materials and equipped with features that ensure safe and reliable performance in demanding environments. Whether for temporary storage during hydraulic fracturing operations or other industrial applications, this skidded frac tank offers the capacity, stability, and ease of use needed for optimal operation.

Key Features

Model Year: 2023
Dimensions:

• Length: 40ft (12192mm)
• Width: 8ft (2438mm)
• Height: 9ft 6in (2896mm)
• Weight: 9750kgs

Capacity:

• 450 barrels

Construction:

• Made from 6mm Q235 carbon steel, ensuring high strength and durability.
• V-bottom floor on rectangular tubing for enhanced stability and ease of cleaning.

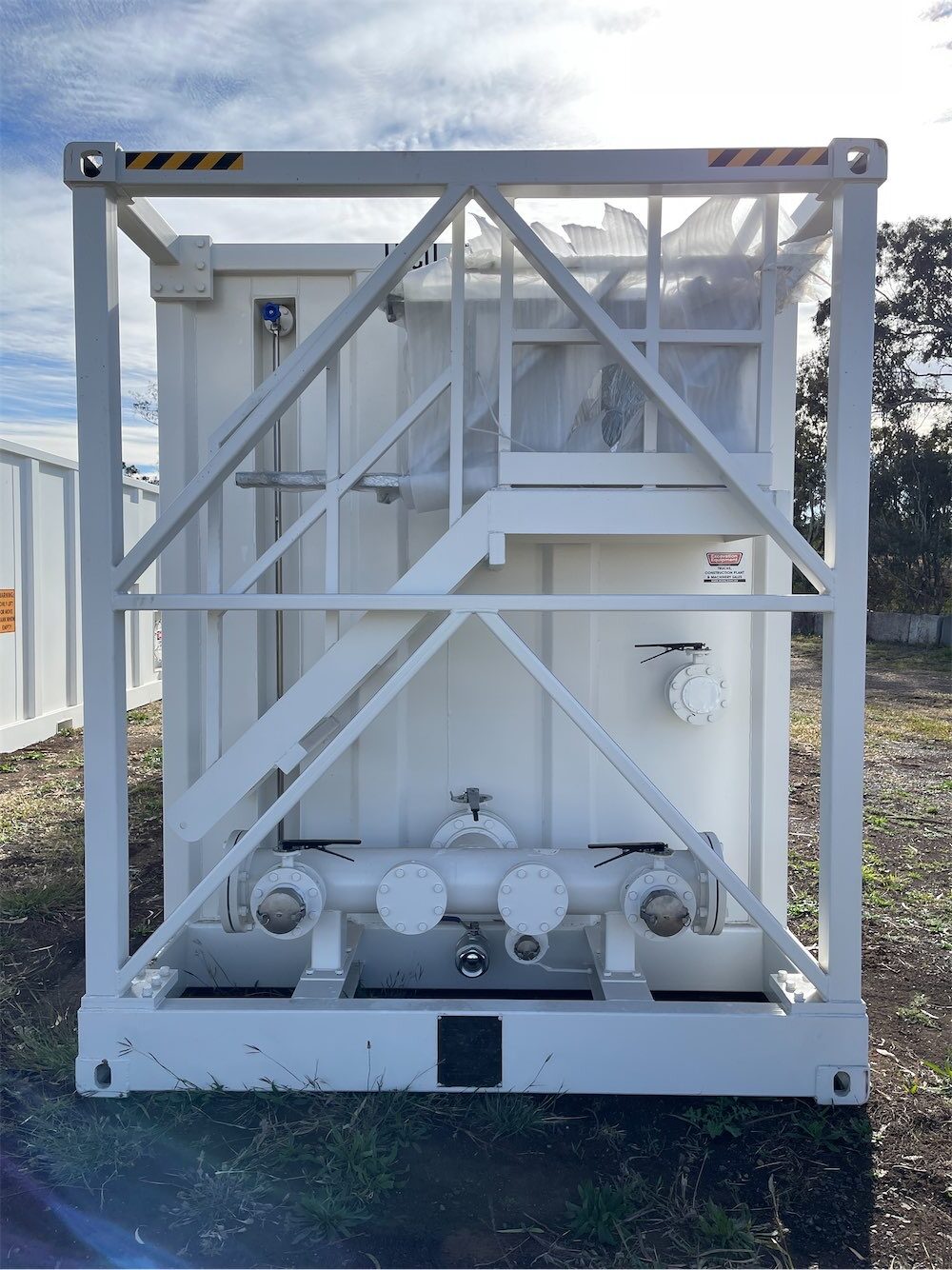

External Manifold and Inlets/Outlets:

• 8″ external manifold for efficient tank linking.
• 4″ inlets with circulation to both the front and rear.
• 4″ outlets on the manifold equipped with ANSI 150 flange and butterfly valves.
• 4″ bottom suction at the rear of the tank for easy liquid extraction.

Additional Features:

• Liquid level gauge at the front for easy monitoring of contents.

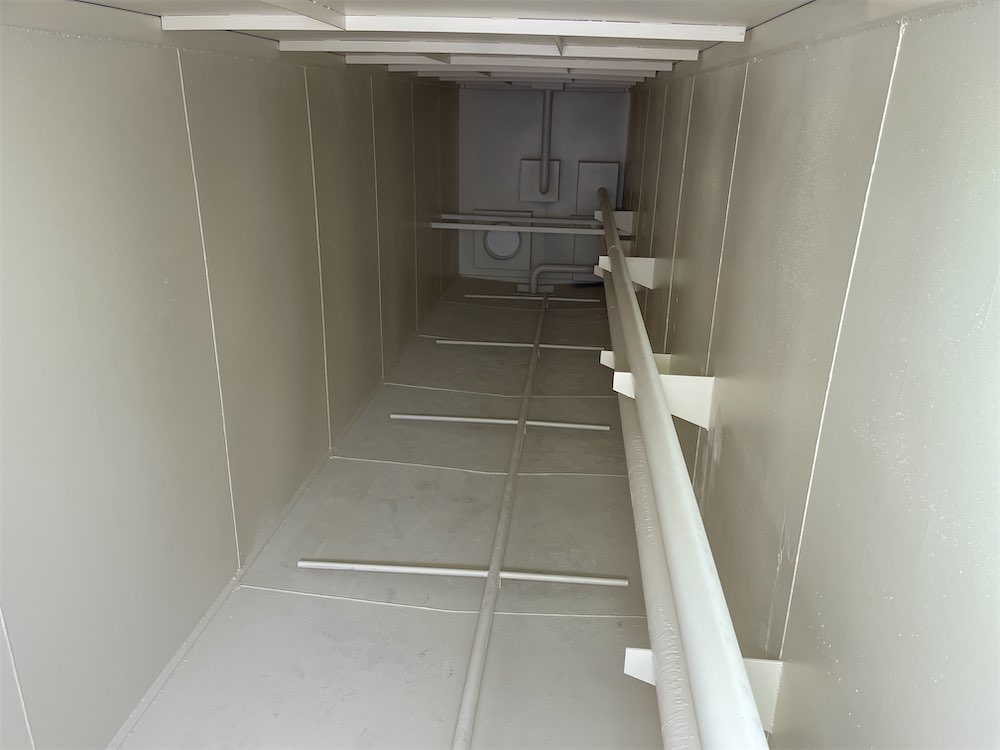

• Epoxy resin liner to protect against corrosion and chemical damage.

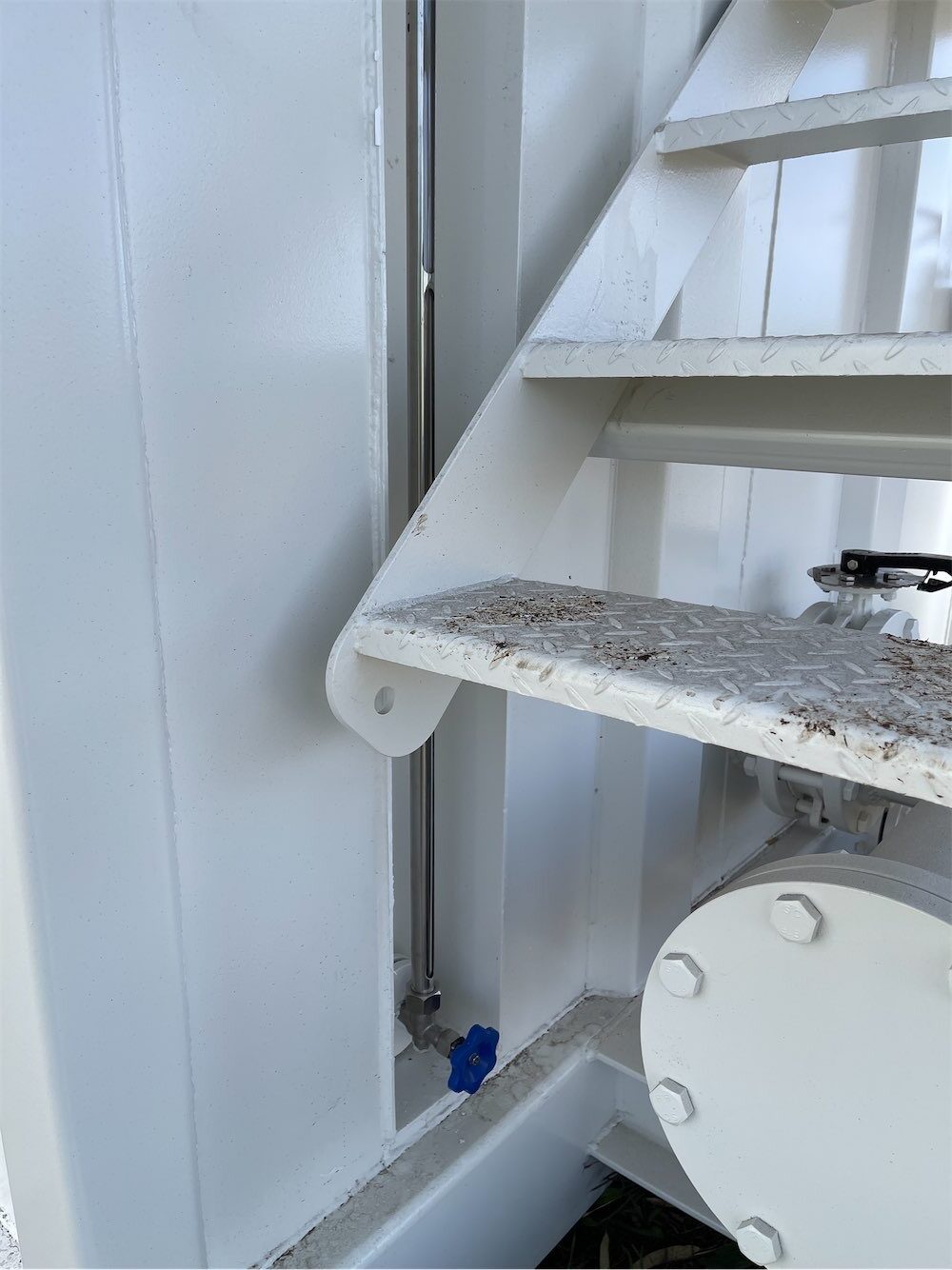

• Access ladder for safe and easy entry to the tank.
• Centre fork pockets for simplified transportation and positioning.

ISO Container Compliance:

• Constructed as a 40FT HC ISO container, ensuring standardization and compatibility with various shipping and storage systems.
• All seams are double-welded to prevent leaks and ensure structural integrity.
• No rods or cross bracing inside, providing unobstructed internal space.
• All continuous welds for enhanced strength and reliability.
• Full capacity static test performed to guarantee performance under load.

Benefits

Durability and Reliability:
The 40ft Skidded Frac Tank Container is built to withstand harsh environments and rigorous use. The 6mm Q235 carbon steel construction and epoxy resin liner ensure long-term durability and resistance to corrosion and chemical exposure. Double welding on all seams and continuous welds provide additional structural integrity, making this tank a reliable choice for liquid storage needs.

Efficiency and Convenience:
With an 8″ external manifold, multiple 4″ inlets and outlets, and bottom suction, this frac tank offers efficient fluid management and easy connectivity. The inclusion of centre fork pockets allows for straightforward handling and placement, while the access ladder ensures safe access for maintenance and monitoring.

Versatility:
Suitable for a variety of industrial applications, the 40ft Skidded Frac Tank Container can be used for storing different types of liquids, including water, oil, and other chemicals. Its design and features make it an excellent choice for hydraulic fracturing operations, temporary storage solutions, and other demanding industrial processes.

Specifications

Dimensions

• Length: 40ft (12192mm)
• Width: 8ft (2438mm)
• Height: 9ft 6in (2896mm)
• Weight: 9750kgs

Capacity

• 450 barrels

Construction

• 6mm Q235 carbon steel
• V-bottom floor on rectangular tubing

Manifold and Inlets/Outlets

• 8″ external manifold
• 4″ inlets with circulation to front and rear
• 4″ outlets with ANSI 150 flange & butterfly valves
• 4″ bottom suction at the rear

Additional Features

• Liquid level gauge at front
• Epoxy resin liner
• Access ladder
• Centre fork pockets

Compliance and Safety

• 40FT HC ISO container
• Double welded seams
• Continuous welds
• No rods or cross-bracing
• Full capacity static test performed
